eDNA filtration capsules
Capsules
In partnership with the Canadian company Waterra, specialised in groundwater monitoring and sampling equipment, Argaly is a European reseller of eDNA filtration capsules. Those capsules are effective at recovering DNA from aquatic organisms from filtrations of large volumes of running or stagnant waters.
The commercialised capsules contain 600 cm² of high quality polyethersulphone 0.45 microns filter media
allowing to capture DNA from aquatic organisms.
Those filters can be used in high turbidity waters and filtration volumes can go up to 100 liters.
Other pore sizes are available on demand: 0.1, 0.2, 0.45, 1 and 5 microns.
Filtration pump
Pump
The pump (CE certified) is connected to a battery that can hold a charge for up to 12 hours with only 4 hours of recharging. The pump is equipped with a flowmeter at the pump outlet, allowing to monitor the filtered volume at any time. The watertight case, attached by a shoulder strap, allows to safely perform the sampling with free hands and feet in the water, if needed.
Filtration system
Technique
The filtration technique proposed by ARGALY, with a pumping system downstream of the capsule, eliminates the need to change the pipes between samplings and limits the risk of contamination.
One end of the pipe is placed on the capsule outlet and the other end is connected to the peristaltic pump. A second pipe placed on the pump outlet allows the filtered water to be evacuated. As an example, a filtration of 30 minutes in clear water allows to collect around 40 liters of water.
Once filtration is complete, the capsule is emptied from residual water and then filled with DNA preservation buffer. Airtight caps are used to seal the capsule. After vigorous shaking the capsule, the preservation buffer will either be collected in a Falcon tube or stored in the capsule at room temperature until it is sent to the laboratory.

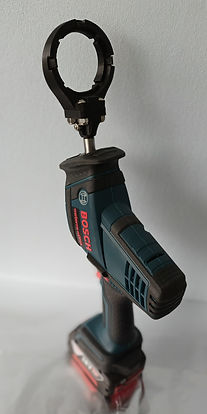

Shaker
Shaker
To optimize DNA collection, we recommend shaking the capsule vigorously directly in the field after pouring the preservation buffer in the capsule.
Tests have shown that DNA is more easily retrieved when it is immediately resuspended compared to when it remains on the membrane for a few days/weeks before DNA extraction in the laboratory.
Our supplier Waterra has developed an easy-to-use shaker, adapted to its capsules, to optimise the amount of DNA collected during aquatic sampling.
- References -
These filtration capsules have been compared with other methods for detecting aquatic species and their effectiveness has been demonstrated :
- Peixoto and al. 2020
- Douchet and al. 2021
- Souissi and al. 2022
- Nikolic and al. 2023
Researchers from the Laboratory of Alpine Ecology of Grenoble (Dr Pierre Taberlet and Dr Frédéric Boyer) have also validated the use of those capsules in their eDNA research projects.
To know more about the capsules, don't hesitate to contact us!
